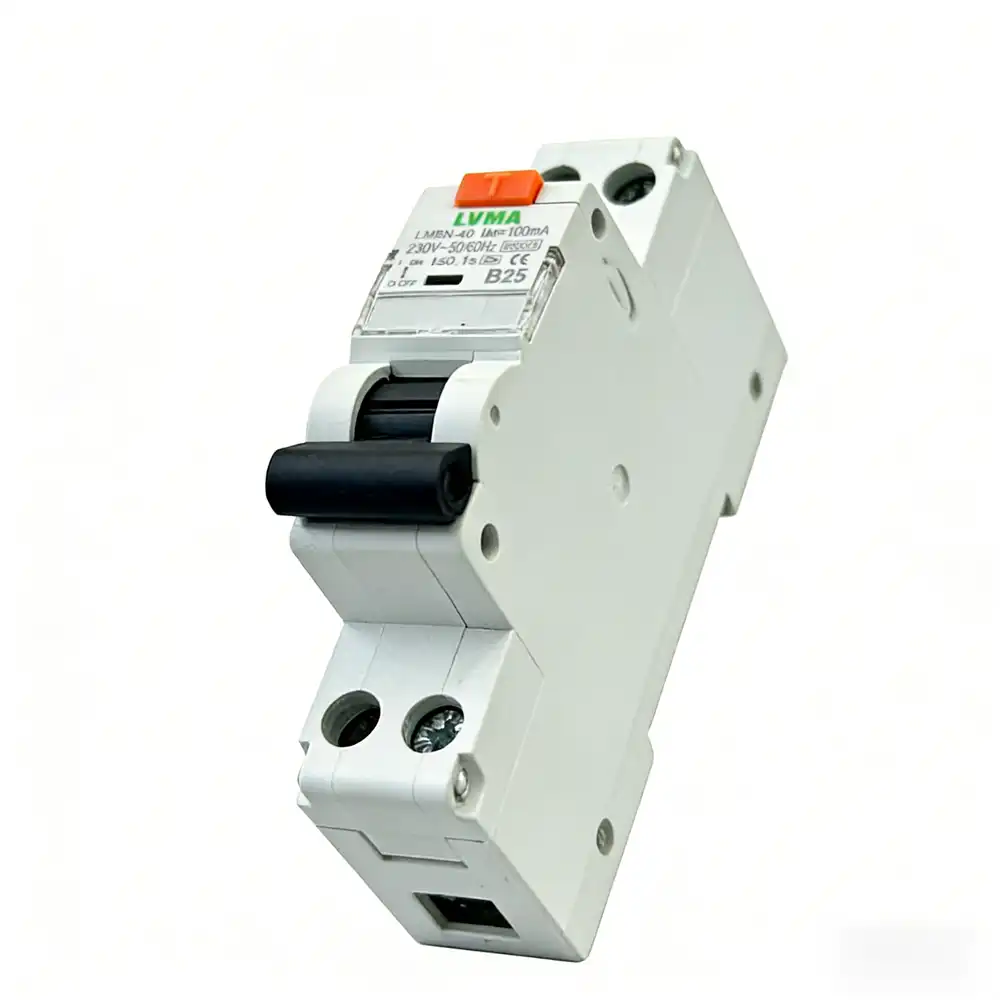

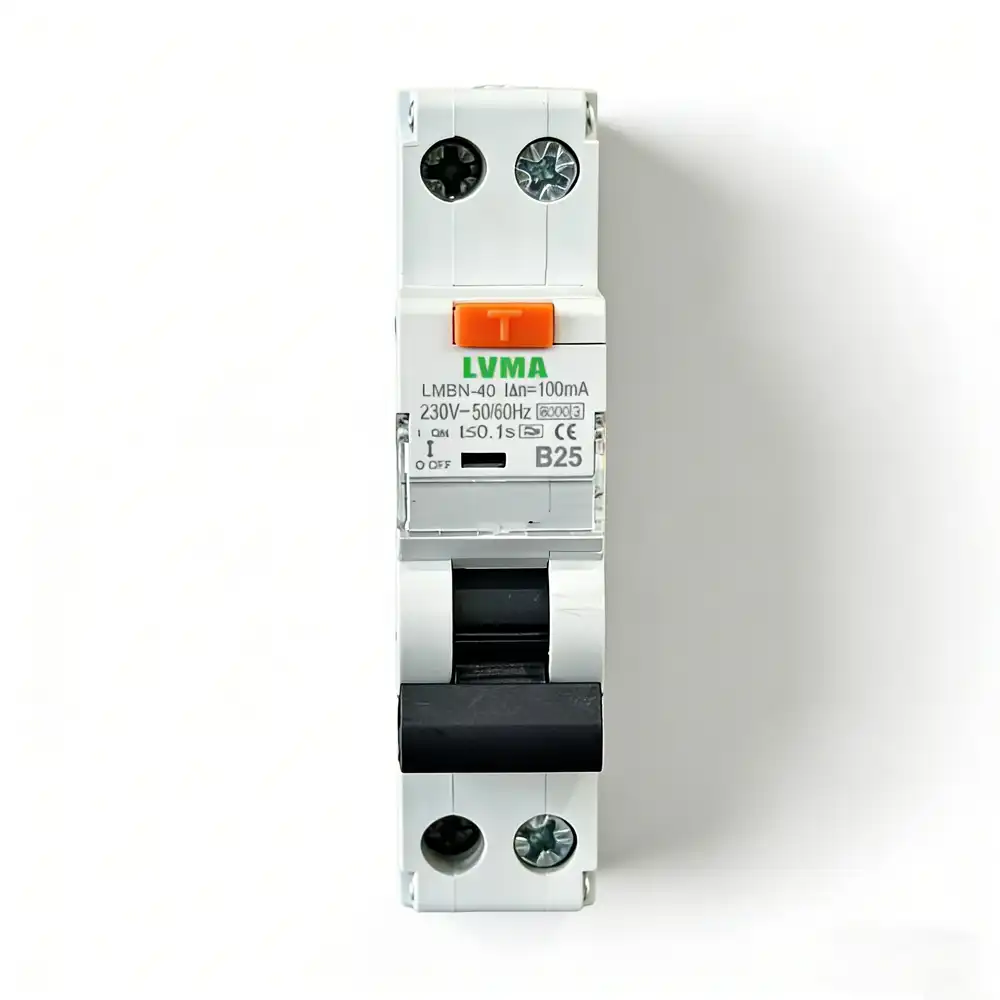

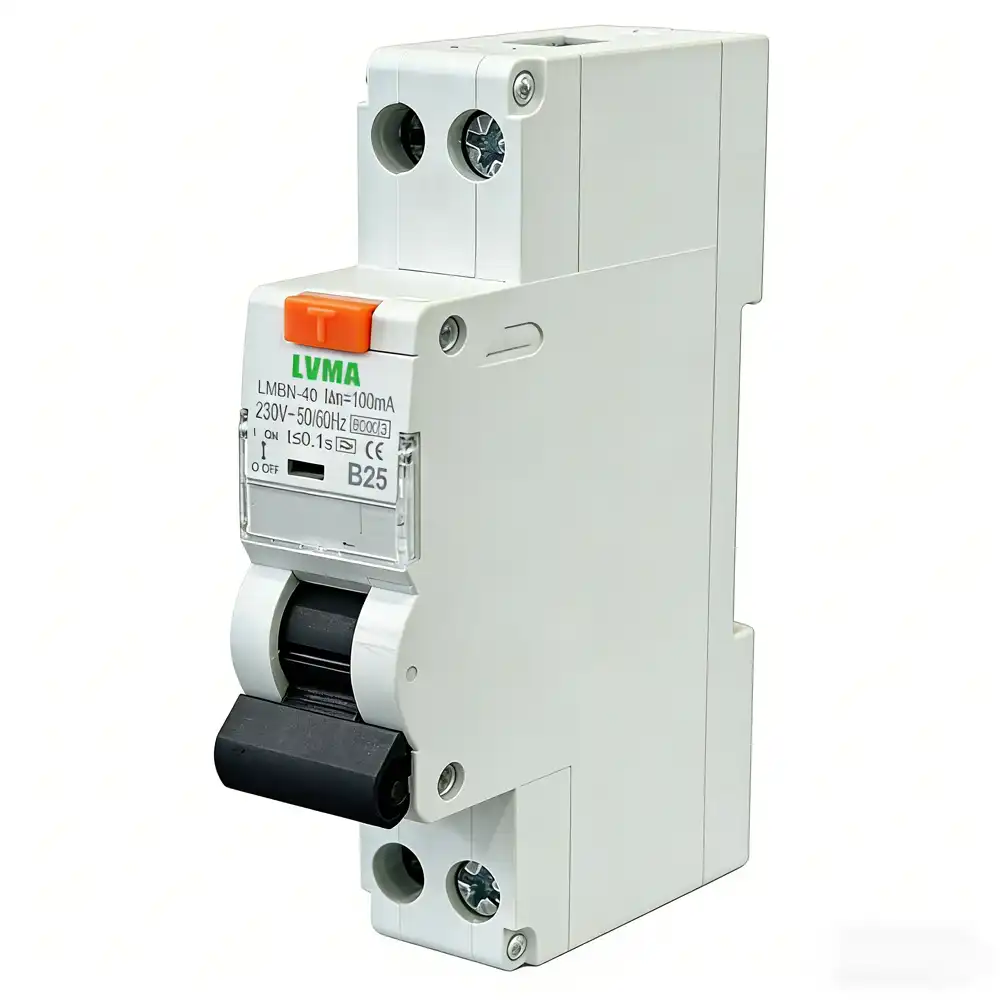

LMBN-40 RCBO 1P+N Mini 18mm
Rated voltage(V)：230(220)
Pole:1P+N
Shell-level rated current(A):40A
Rated current(A):6,10,16,20,25,32,40
Rated breaking residual current(mA):10、30、100
Breaking capacity(A):6000
Mounting size:18*79*85
LMBN-40 RCBO is suitable to the single phase residual circuit of 50/60Hz, rated voltage 230V, as the current leakage protection and protect the civil electrical circuit from over load and short circuit and it has the features of volume small,breaking capacity high. Null/live wire is cut at the same time, and even the wire is reverse connection, it still have current leakage Protection.
The product conforms to standards IEC 61009-1
TECHNICAL PARAMETER
| Rated voltage(V) | Pole | Shell-level rated current(A) | Rated current(A) | Rated breaking residual current(mA) | Rated not breaking ressidual current(mA) | Breaking time ofrated residul current(s) | Breking capacity(A) |
|---|---|---|---|---|---|---|---|
| 230(220) | 1P+N | 40 | 6，10，16，20，25，32，40 | 10、30、100 | 0.5I△n | ≤0.1 | 6000 |
CURRENT RELEASE CHARACTER DIAGRAM
| Test current | Rated current | Requested time | Result | Start station | Remark |
|---|---|---|---|---|---|
| 1.13In | All | t≤1h | Don’t trip | Cool | |
| 1.45In | t<1h | Trip | Heat | Current ascends the requested value stably in 5s | |
| 2.55In | In≤32A | Is<t<60s | Trip | Cool | Auxiiary switch closed and power on |
| 2.55In | In≤32A | Is<t<120s | Trip | Cool | |
| 5In | All | t≤0.1s | Don’t trip | Cool | |
| 10In | t≤0.1s | Trip | Cool |

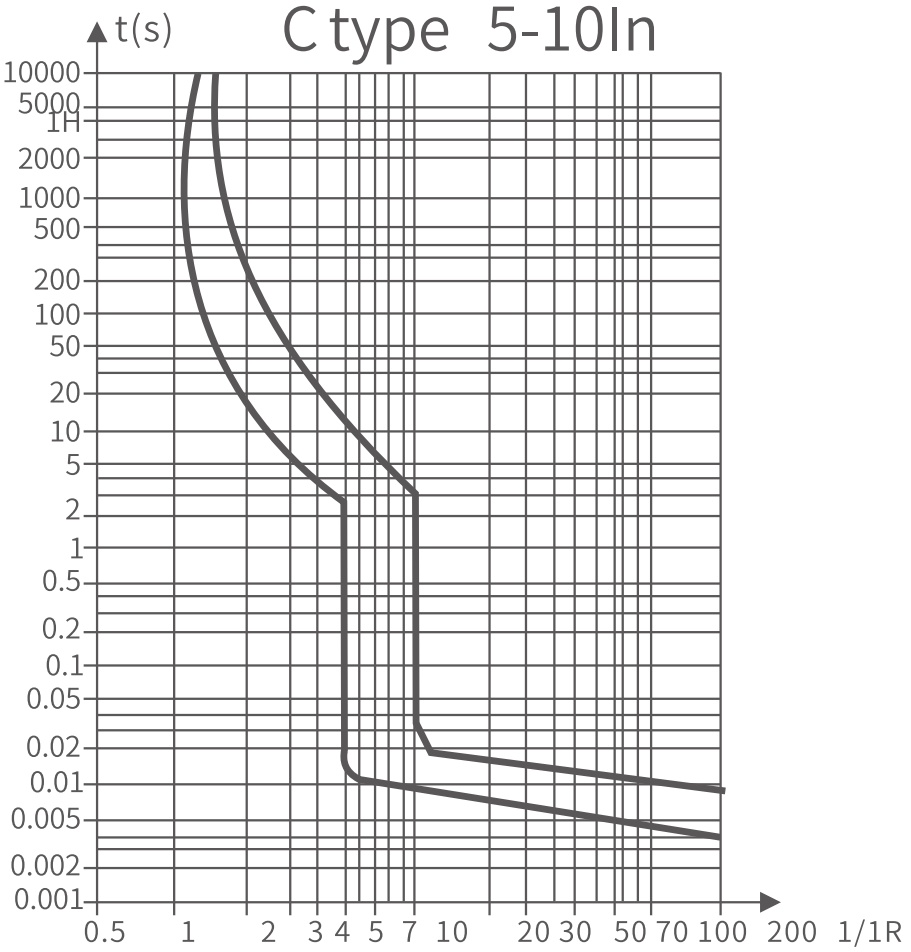

BREAKING CHARACTERISTIC CURVE

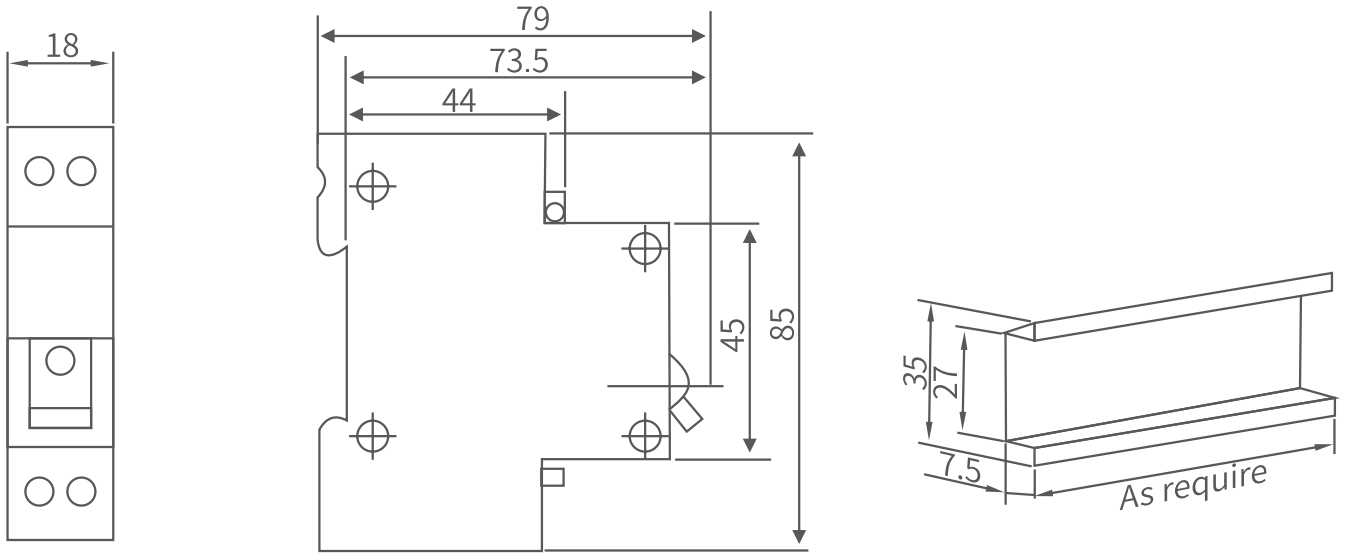

OUTLOOK AND MOUNTING SIZE
Application guidelines:
1. Press the test button once a month, check leakage protective device.
2. When the leakage protective device, the device on the obverse of the redmachine instructions.
3. When reclosing circuit breaker, the protection device reset automatically.
