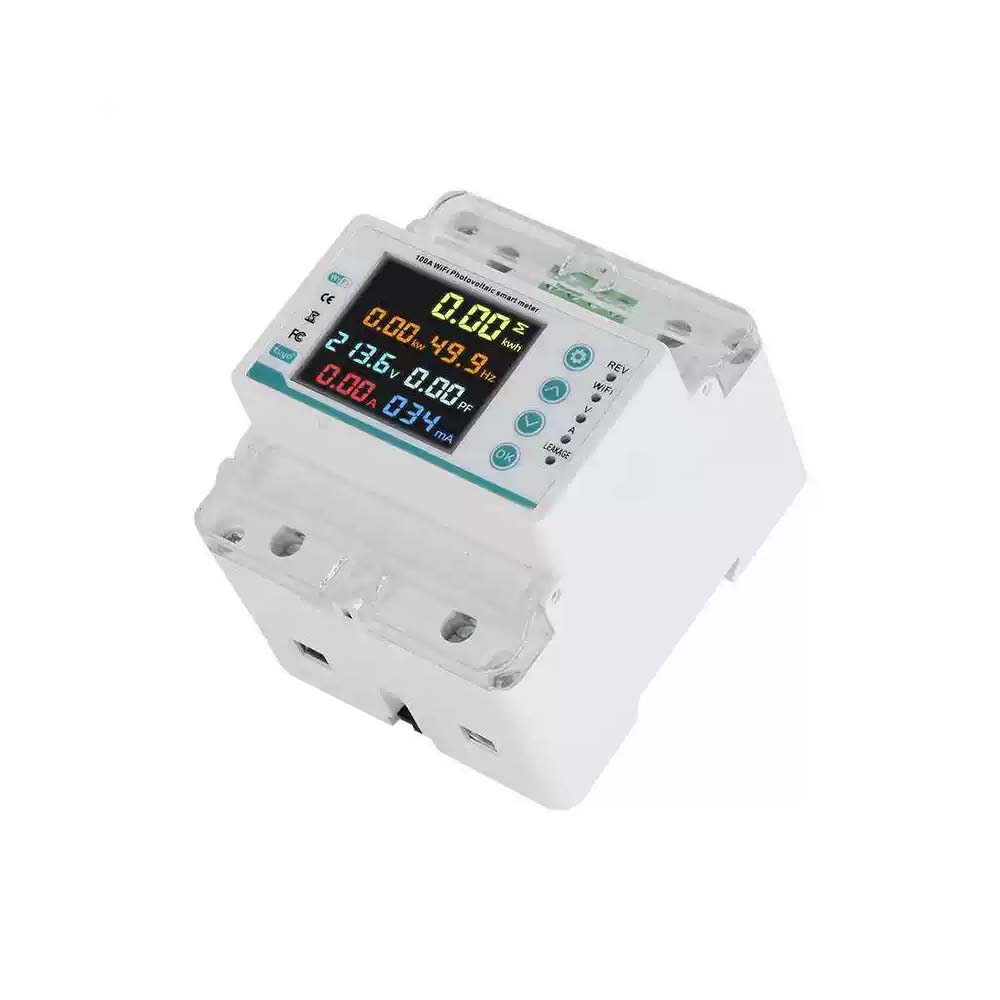

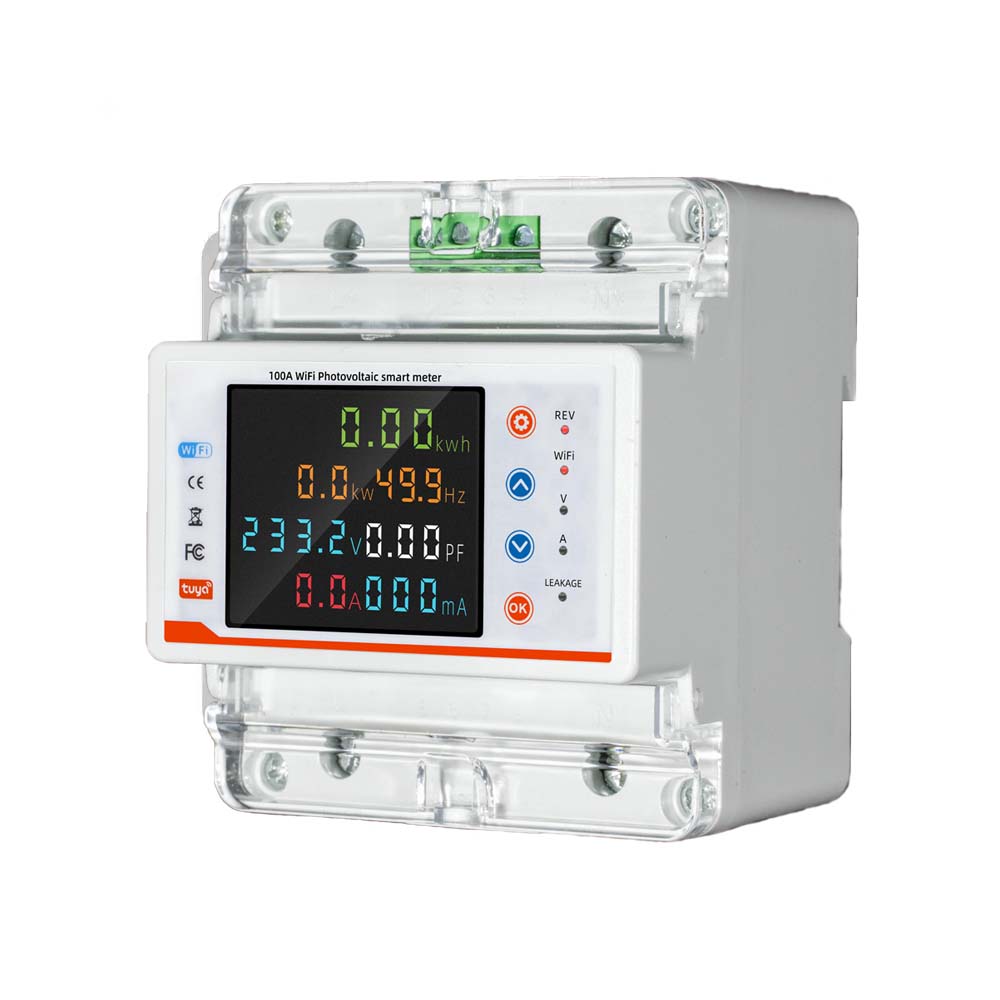

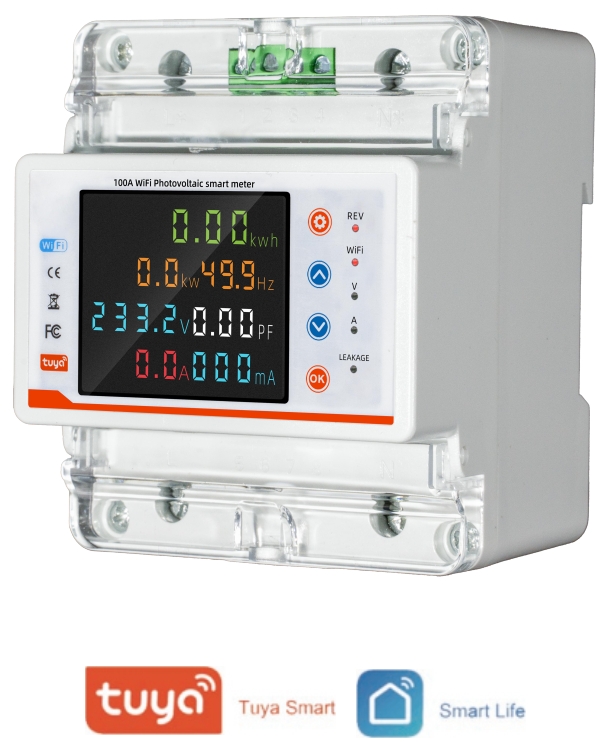

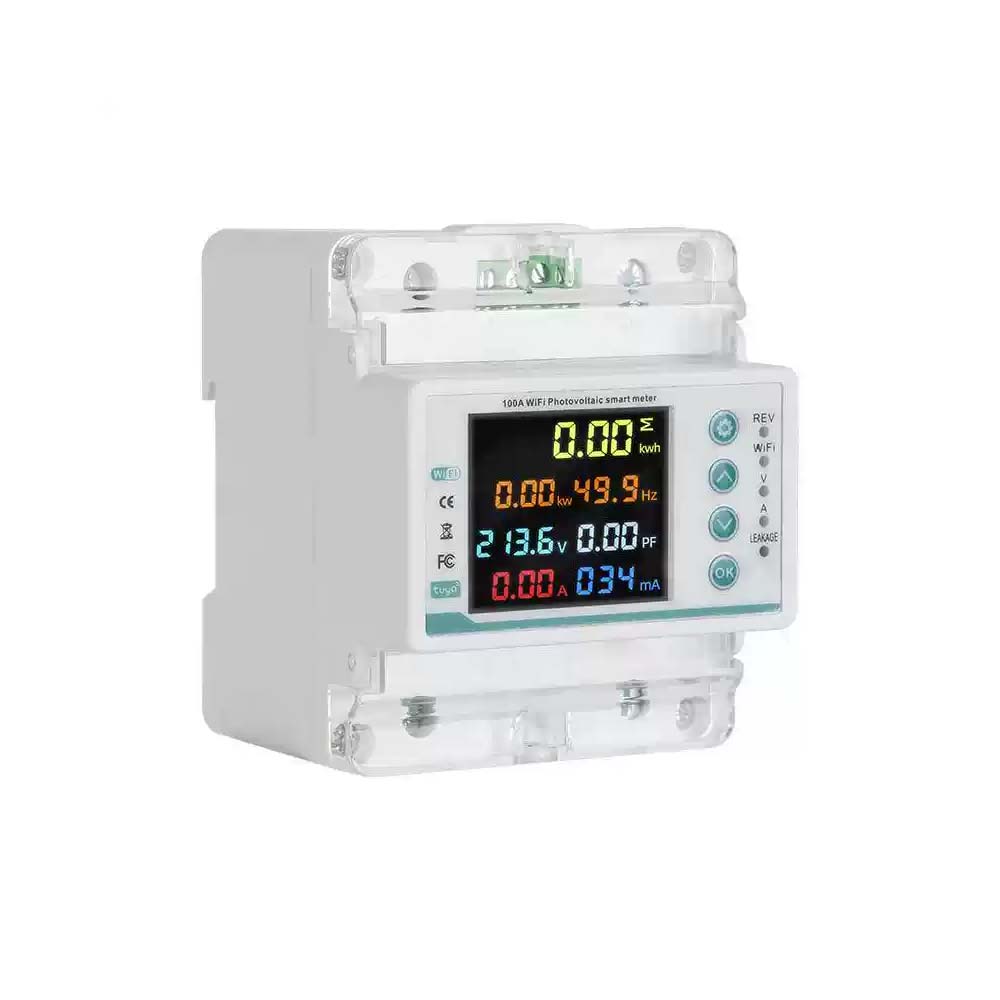

This is a 100A WiFi photovoltaic smart meter. This device is mainly used to monitor and manage the power parameters of photovoltaic systems and has smart metering functions. The meter’s display shows a variety of power parameters, including electric energy (kWh), power (kW), frequency (Hz), voltage (V), current (A), and power factor (PF). In addition, the meter also has WiFi function and supports remote monitoring and management. There are also multiple function buttons on the device for settings and operations. The overall design is compact and suitable for installation in photovoltaic systems for precise power measurement and management.

Main Functions:

1.Over Voltage Protection

2.Under Voltage Protection

3.Over Current Protection

4.Under Current Protection

5.Delay Protection

6.Timer Switch

7.Bidirectional Energy Monitor

8.Current Leakage Protection

9.High Temperature Protection(Can only be set on app)

Each parameter can be set with action threshold and On/Off
