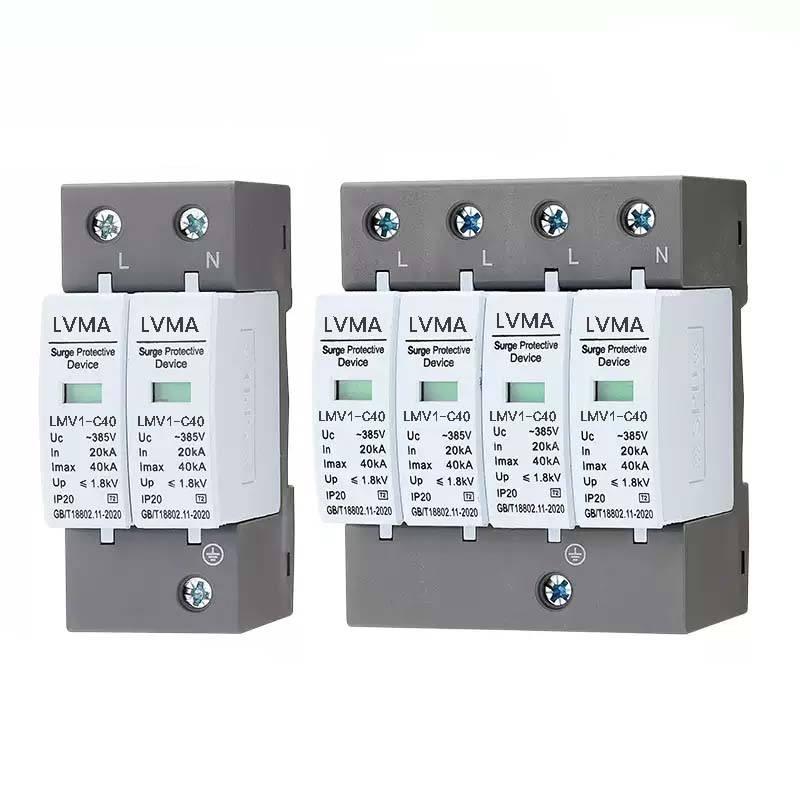

LMV1-C Surge Protection Device 10kA 20kA
Surge Protective Device (SPD) , also known as Surge Protector, lightning arrester, is a kind of electronic protection equipment used to suppress the“Surge voltage”(instantaneous overvoltage) in power systems and signal lines, it can quickly lead the instantaneous high voltage beyond the tolerance range of the equipment into the earth, and avoid the damage of the back-end electrical equipment or communication equipment due to overvoltage and overcurrent, is the electrical system and electronic equipment lightning protection, anti-electromagnetic interference, one of the core components.
| Model name | LMV1-C |
|---|---|
| Power supply system | TNS,TNC |
| Maximum continuous voltage | 275/320/385/420V |
| SPD to EN61643-11 | Type2 |
| SPD to IEC61643-11 | ClassII |
| Nominal discharge current | 20kA |
| Maximum discharge current | 40kA |
| Voltage protection level | ≤1.3/1.5/1.8/2.0kV |
| Response time | <25ns |
| Operating State/Fault Indication | Green(good)/Red(replace) |
| Degree of protection | IP20 |
| Insulating material/flammability class | PA66,UL94 V-0 |
| Temperature rang | -40°C~+80°C |
| Altitude | 13123ft[4000m] |
| Conductor Cross Section | 35mm²(Solid)/25mm²(Flexible) |
| Format | Pluggable |
| For mounting on | DIN rail 35mm |
| Place of installation | indoor installation |
| Remote contacts | Optional |
| Type of remote signalling contace | Changeover contact |
