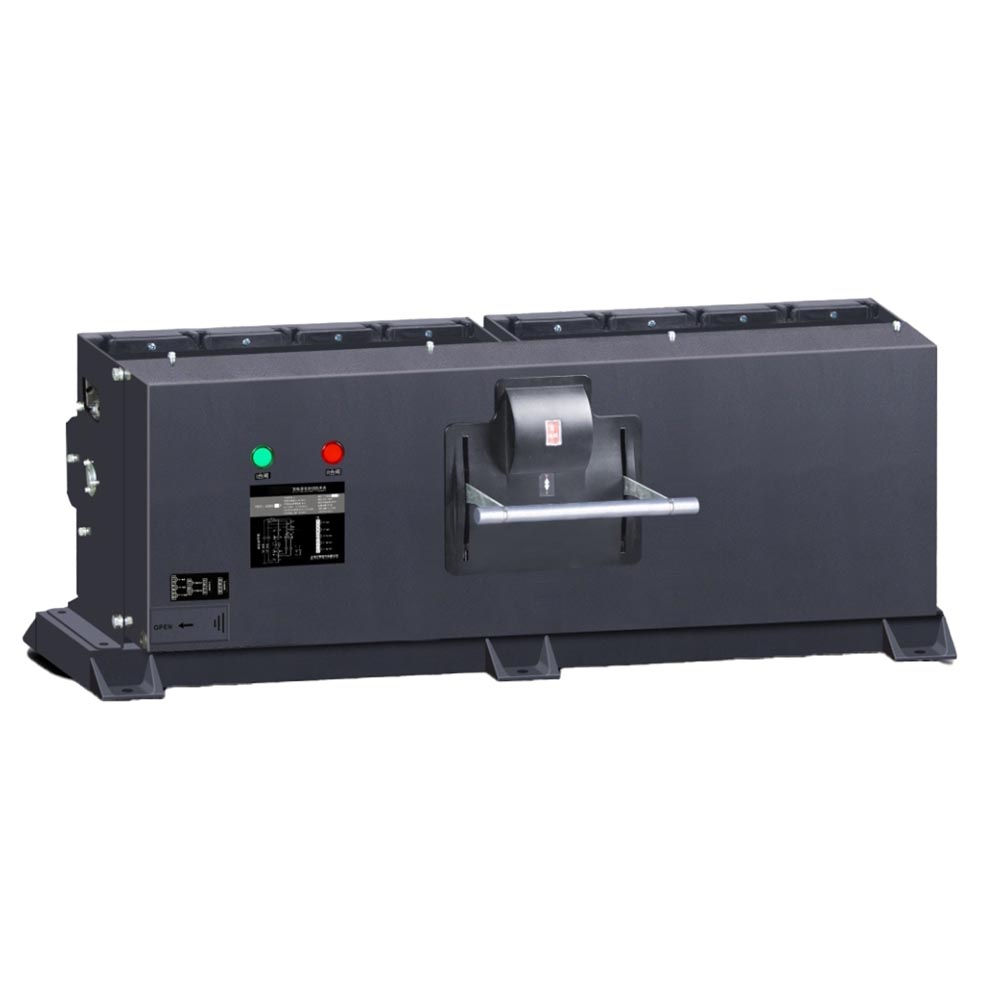

LMS1-Q 630-6300A ATS Automaitc Transfer Switch
LMS1-Q 630-6300A ATS Automaitc Transfer Switch
1. Both closing and disconnecting are operated by an electromagnetic coil.
2. Simple structure and convenient maintenance.
3. Large contact capacity, stable and reliable new movable contact, strong,overload capacity.
4. The redundant conductive part is eliminated, structure is simple and has a long life.
5. Independent double-arc extinguishing chamber structure is adopted on the main and standby power sides to prevent short circuit caused by arc fundamentally.
1. Both closing and disconnecting are operated by an electromagnetic coil.
2. Simple structure and convenient maintenance.
3. Large contact capacity, stable and reliable new movable contact, strong,overload capacity.
4. The redundant conductive part is eliminated, structure is simple and has a long life.
5. Independent double-arc extinguishing chamber structure is adopted on the main and standby power sides to prevent short circuit caused by arc fundamentally.
LMW1 intelligent universal frame circuit breaker.
It is a core protection device in low-voltage power distribution systems. It is mainly used for incoming lines or busbar segments of distribution lines. It has protection functions such as overload, short circuit, and ground fault. It can achieve precise parameter setting and fault monitoring through intelligent controllers.
The rated current can reach 6300A, the number of poles is 3P and 4P, and it can cut off the phase line and neutral line at the same time. It is suitable for data centers, industrial plants and other scenarios that require high power supply reliability. It can be operated manually, and also supports electric opening and closing to achieve remote control.
| Parameter | Frame Size 3200 | Frame Size 6300 |
|---|---|---|
| Rated Insulation Voltage Ui (V) | AC 1000 | AC 1000 |
| Rated Impulse Withstand Voltage Uimp (kV) | 8 | 8 |
| Rated Operational Voltage Ue (V) | 400 (50Hz) | 400 (50Hz) |
| Control Supply Voltage Us (V) | 220 | 220 |
| Rated Operational Current Ie (A) | 630 / 800 / 1000 / 1250
1600 / 2000 / 2500 / 3200 |
4000 / 5000 / 6300 |
| Operating Current (A) | 16 (AC 220V)
20 (AC 220V) |
32 (AC 220V) |
| Utilization Category | AC-33iB | AC-33iB |
| Rated Limiting Short-Circuit Current Iq (kA) | 120 | 120 |
| Changeover Operating Time (ms) | ≤ 600 | ≤ 600 |
| Contact Transfer Time (ms) | 60 | 60 |
| Mechanical Life (Operating Cycles) | 2500
1500 |
1500 |
| Electrical Life (Operating Cycles) | 500 | 500 |
LMW1 intelligent universal frame circuit breaker.
It is a core protection device in low-voltage power distribution systems. It is mainly used for incoming lines or busbar segments of distribution lines. It has protection functions such as overload, short circuit, and ground fault. It can achieve precise parameter setting and fault monitoring through intelligent controllers.
The rated current can reach 6300A, the number of poles is 3P and 4P, and it can cut off the phase line and neutral line at the same time. It is suitable for data centers, industrial plants and other scenarios that require high power supply reliability. It can be operated manually, and also supports electric opening and closing to achieve remote control.
| Parameter | Frame Size 3200 | Frame Size 6300 |
|---|---|---|
| Rated Insulation Voltage Ui (V) | AC 1000 | AC 1000 |
| Rated Impulse Withstand Voltage Uimp (kV) | 8 | 8 |
| Rated Operational Voltage Ue (V) | 400 (50Hz) | 400 (50Hz) |
| Control Supply Voltage Us (V) | 220 | 220 |
| Rated Operational Current Ie (A) | 630 / 800 / 1000 / 1250
1600 / 2000 / 2500 / 3200 |
4000 / 5000 / 6300 |
| Operating Current (A) | 16 (AC 220V)
20 (AC 220V) |
32 (AC 220V) |
| Utilization Category | AC-33iB | AC-33iB |
| Rated Limiting Short-Circuit Current Iq (kA) | 120 | 120 |
| Changeover Operating Time (ms) | ≤ 600 | ≤ 600 |
| Contact Transfer Time (ms) | 60 | 60 |
| Mechanical Life (Operating Cycles) | 2500
1500 |
1500 |
| Electrical Life (Operating Cycles) | 500 | 500 |
