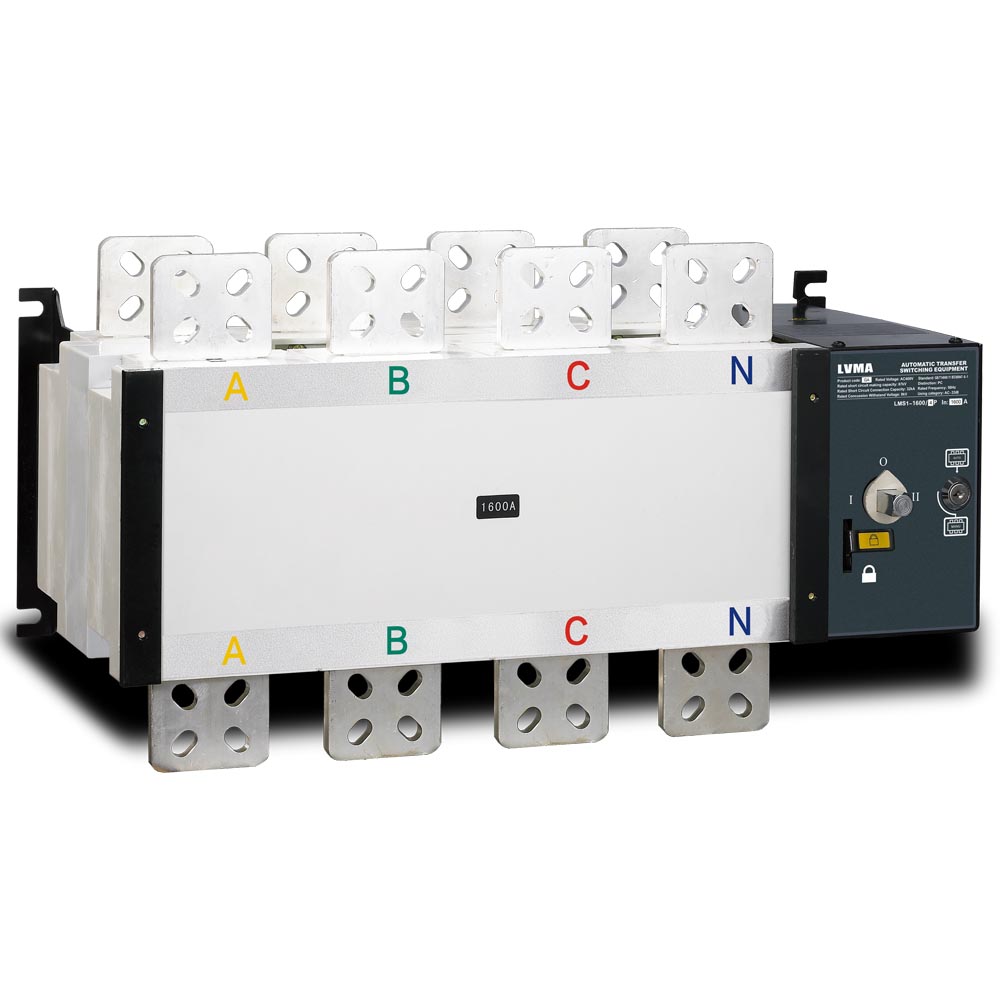

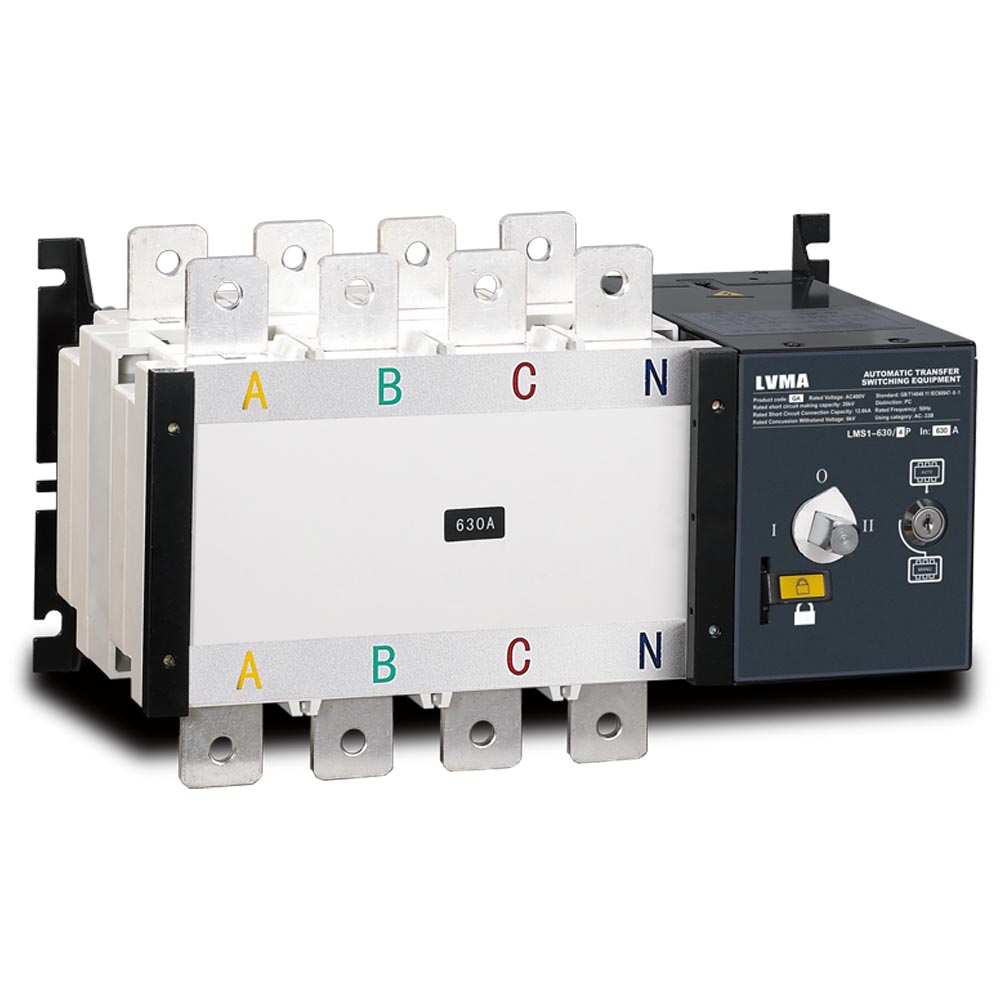

LMS1-GA Automatic Transfer Switch(ATS) 100-3200A PC class
Rated current:16~3200A
Frame size:100、160、250、630、1600、3200
Rated voltage: AC400V 50Hz
Rated control voltage:AC230V
Rated insulation voltage:690V、800V、1000V
Rated impulse withstand voltage:8kV、12kV
Transfer time:＜2.5s
LMS1-GA series is a PC type automatic transfer switch (hereinafter referred to as ATS) , mainly used for AC 50/60 Hz, rated working voltage AC 220/230 V, AC 400/415 V and rated working current 16 A to 3200 a power system, used to switch between two power supply, in the event of a power failure, ATS switch, will switch to the other power supply to ensure the continuity and reliability of power supply.
The automatic transfer switch conforms to IEC60947-6-1 standard, and obtains CCC,CE, TUV certificates.

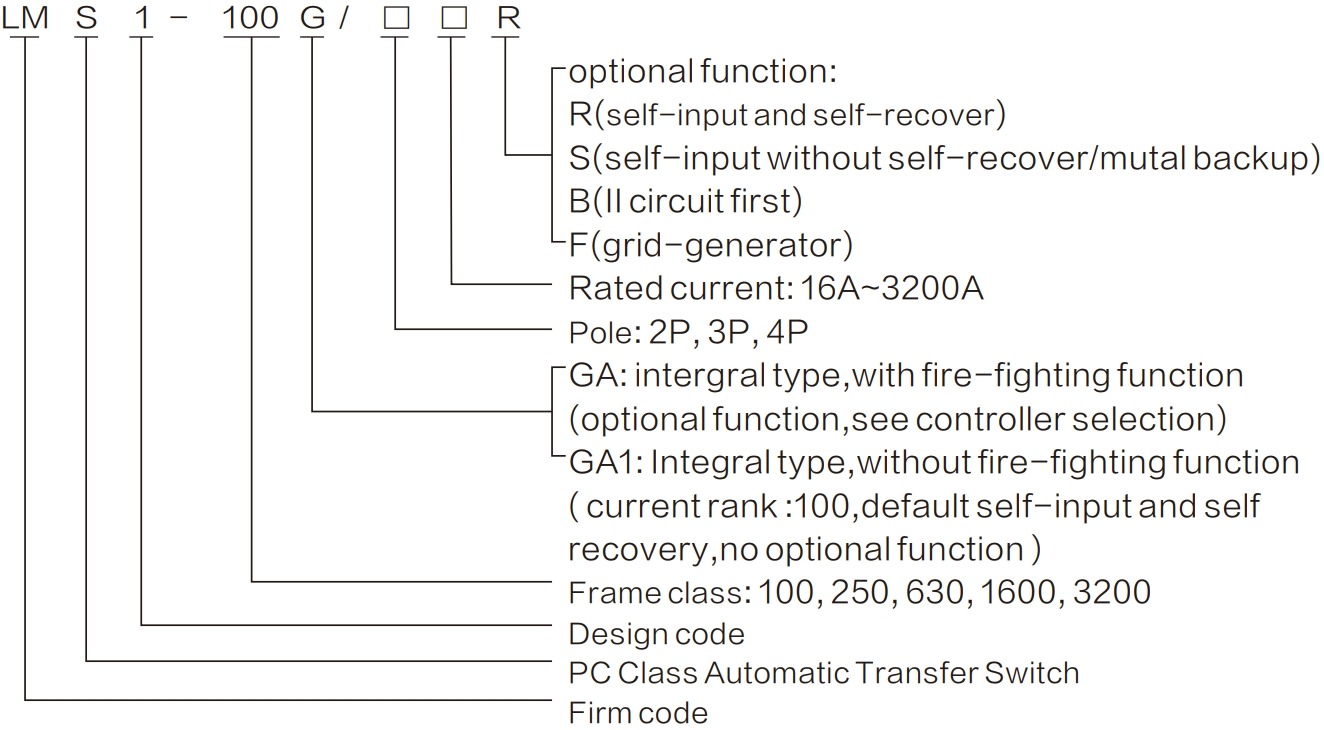

Model meaning

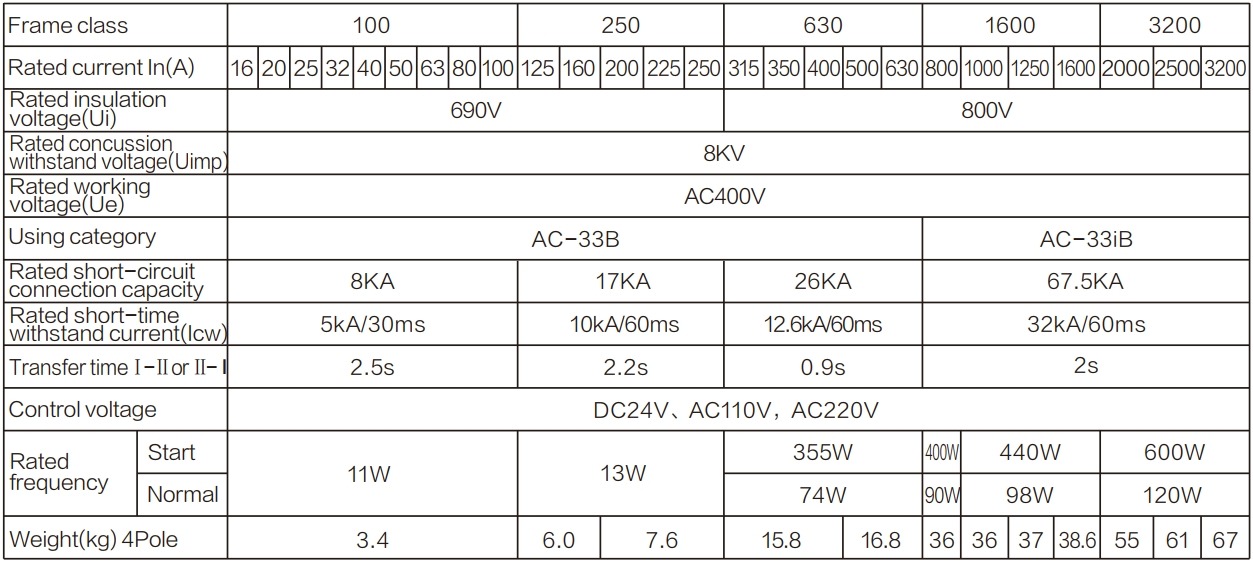

Technical Data

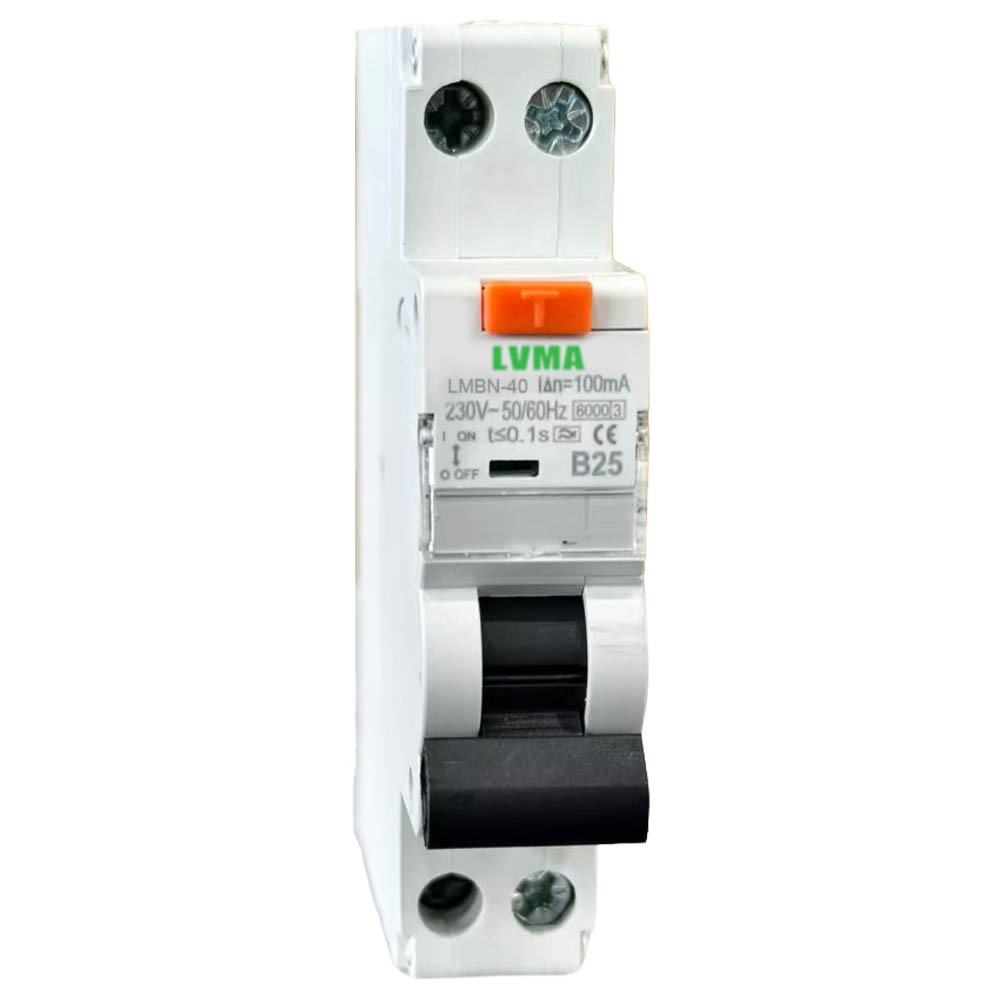

Related Products
