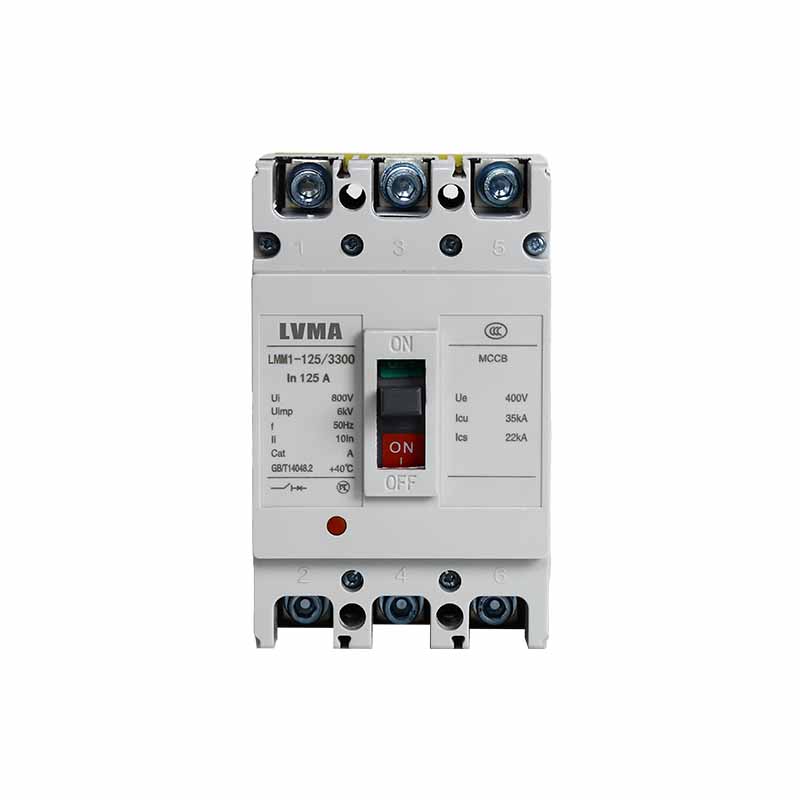

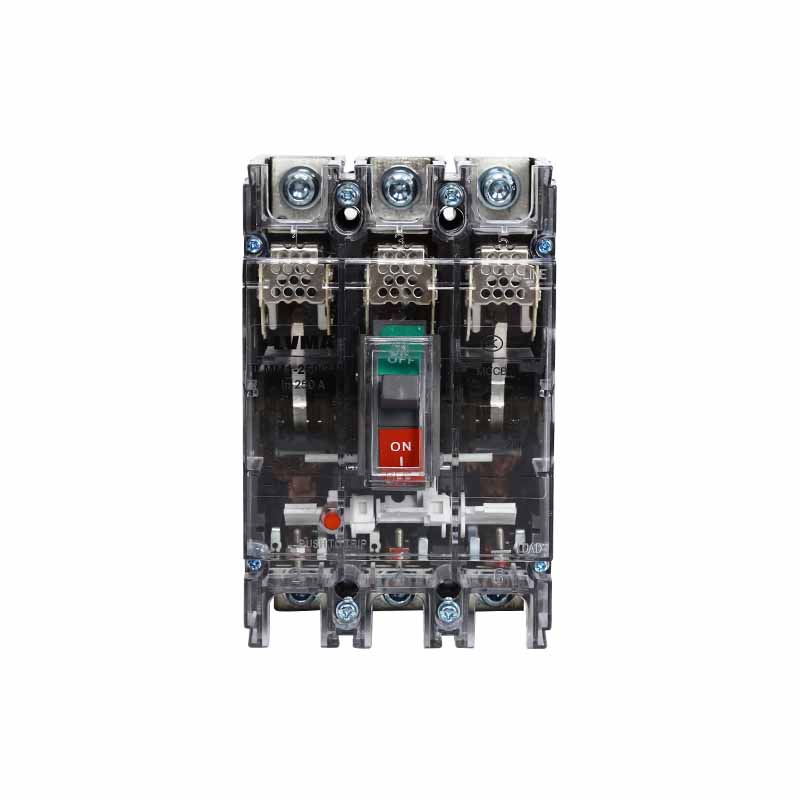

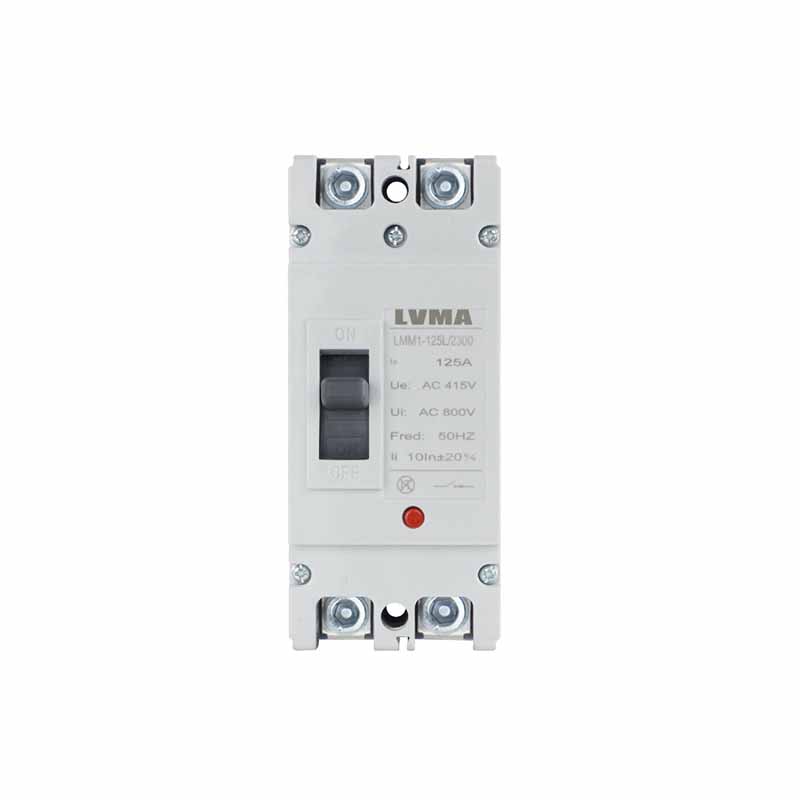

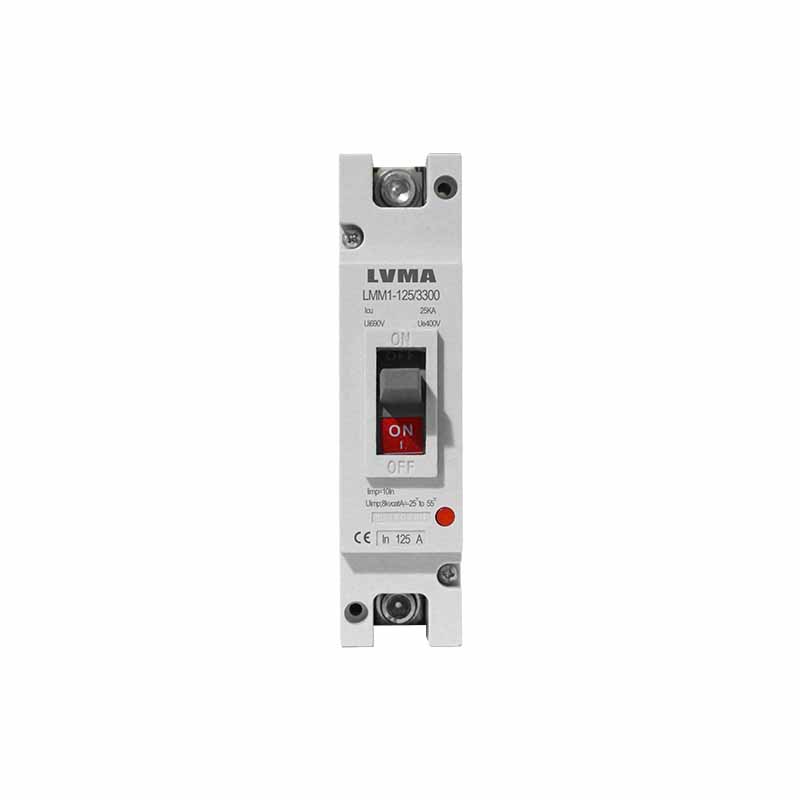

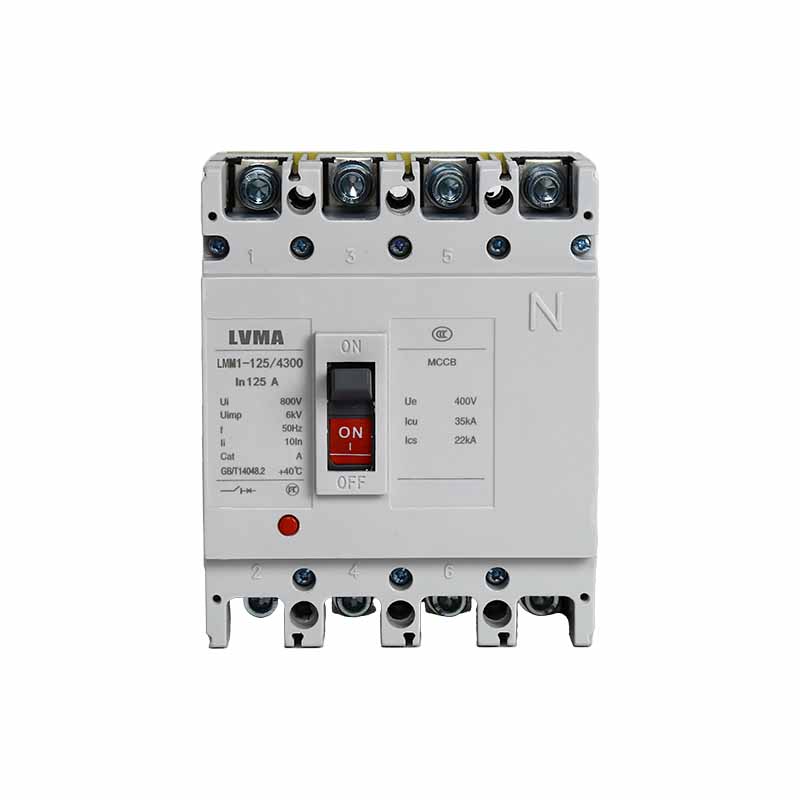

LMM1 MCCB 63-2500A

LMM1 MCCB 63-2500A

Moulded case circuit breaker (mccb) is a kind of automatic switch device. Its contact, arcing chamber, release and operating mechanism are all installed in the moulded case. It can automatically cut off the current when the current exceeds the setting value, and has the protection functions of overload, short circuit and undervoltage. Suitable for branch protection switch, widely used in residential, commercial construction, industrial production and other fields.

Model Name:LMM1
Rated Current:63,125,250,400,630,800,1000,1250,1600,2000,2500
Rated Voltage :AC230/415/500/690
Poles:1P,2P,3P,4P
Rated Insulation Voltage:AC800V
Standard:IEC60947-2

Contact Us

描述
用户评价 (0)

Model name	LMM1-63			LMM1-125			LMM1-250			LMM1-400			LMM1-630			LMM1-800		LMM1-1250(1600)	LMM1-2500
Frame current(A)	63			125			250			400			630			800		1250	2500
Poles	1P,2P,3P,4P			1P,2P,3P,4P			1P,2P,3P,4P			1P,2P,3P,4P			3P,4P			3P,4P		3P,4P	3P,4P
Rated current(A)	10,16,20,32, 40,50,63			16,20,25,32,40,50, 63,80,100,125			100,125,140,160,180, 200,225,250			225,250,315, 350,400			400,500,630			630,700,800		800,1000,1250,1600	2000,2500
Rated voltage Ue(V)	AC400(2P:230)			AC400(2P:230)			AC400(2P:230)			AC400(2P:230)			AC400			AC400		AC400	AC400
Rated insulation voltage Ui(V)	AC 800			AC 800			AC 800			AC 800			AC 800			AC 800		AC 800	AC 800
Rated limit short-circuit breaking capacity level	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	M	M
Short-circuit capacity(kA) Icu	18	35	50	35	50	85	35	50	85	35	65	85	35	65	85	35	65	65	65
Short-circuit capacity(kA) Ics	12	22	35	22	35	50	22	35	50	22	45	50	22	50	50	22	50	50	50
Electrical life	4500			3000			2500			1500			1500			1000		500	500
Mechanical life	8500			7000			6500			4000			4000			2500		2500	2500
