LMBG-63 Isolating Switch
Small disconnectors are the basic electrical appliances used to isolate power supply and ensure the safety of maintenance in low-voltage distribution systems. The core function is to disconnect the connection between power supply and load when the circuit is repaired or the equipment is stopped, prevention of electric shock caused by accidental power supply.
- Model Name:LMGB-63
- Rated Current:10,16,25,32,40,50,63
- Rated Voltage :AC240/415V
- Poles:1P,2P,3P,4P
- Rated Insulation Voltage:500V
- Standard:IEC/EN60947-3
| Standard | IEC/EN60947-3 |
|---|---|
| Poles | 1P,2P,3P,4P |
| Rated voltage(Ue) | AC230V/415V |
| Rated current(In) | 10,16,25,32,40,50,63 |
| Rated frequency | 50/60Hz |
| Rated impulse withstand voltage(Uimp) | 4000V |
| Rated insulation voltage | 500V |
| Electrical life | 2000 Cycles |
| Mechanical file | 10000 Cycle |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5°C to +40°C,Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max.terminal size for cable | 25mm² |
| Installation | Mounting on 35m DIN rail |
| Connection | From top and bottom |

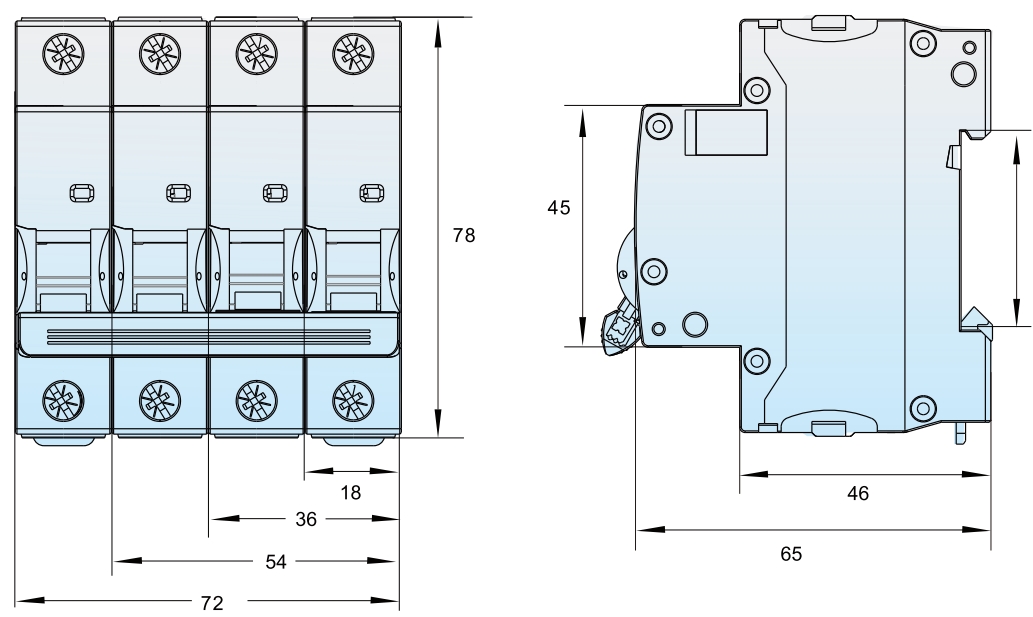

Dimensions and installation sizes
63a isolated miniature circuit breaker switches for household use
