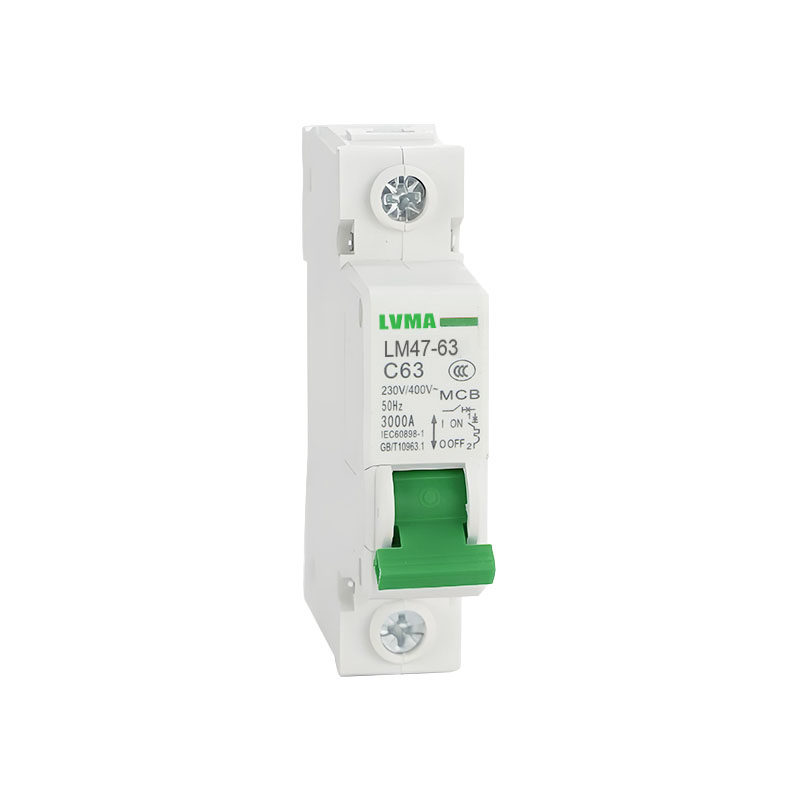

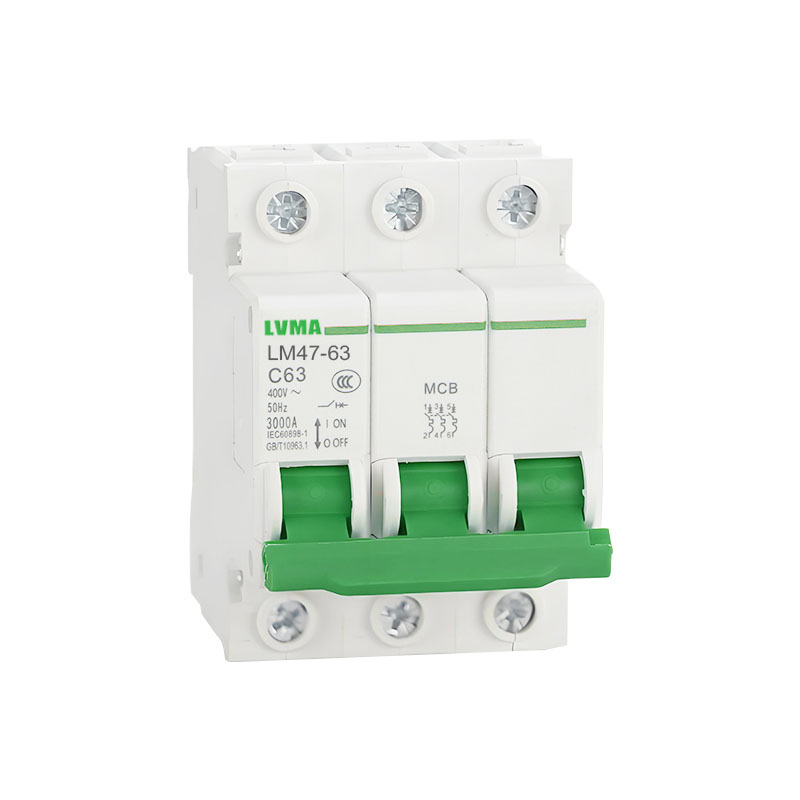

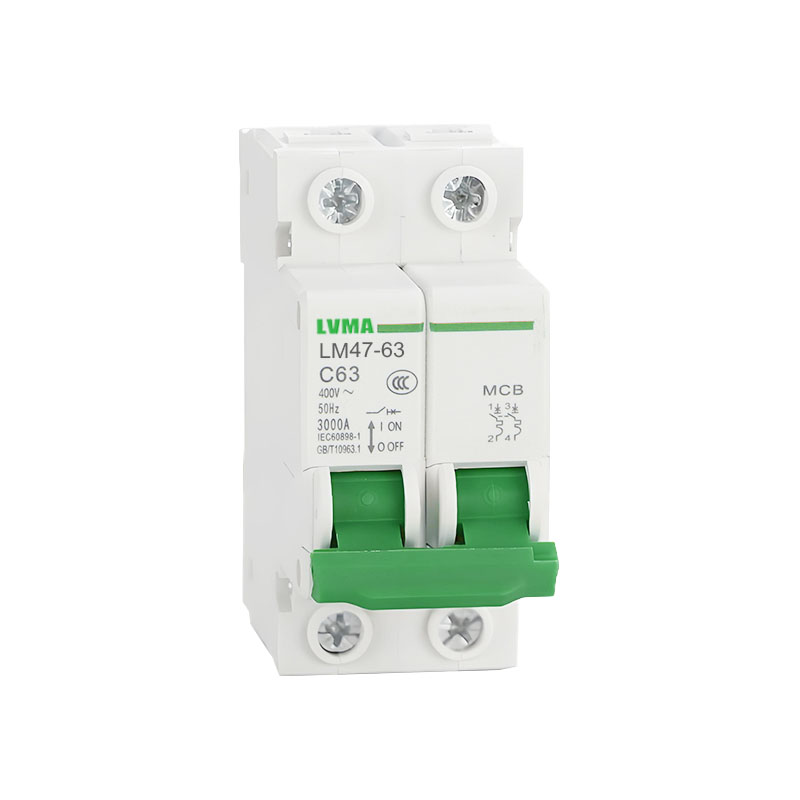

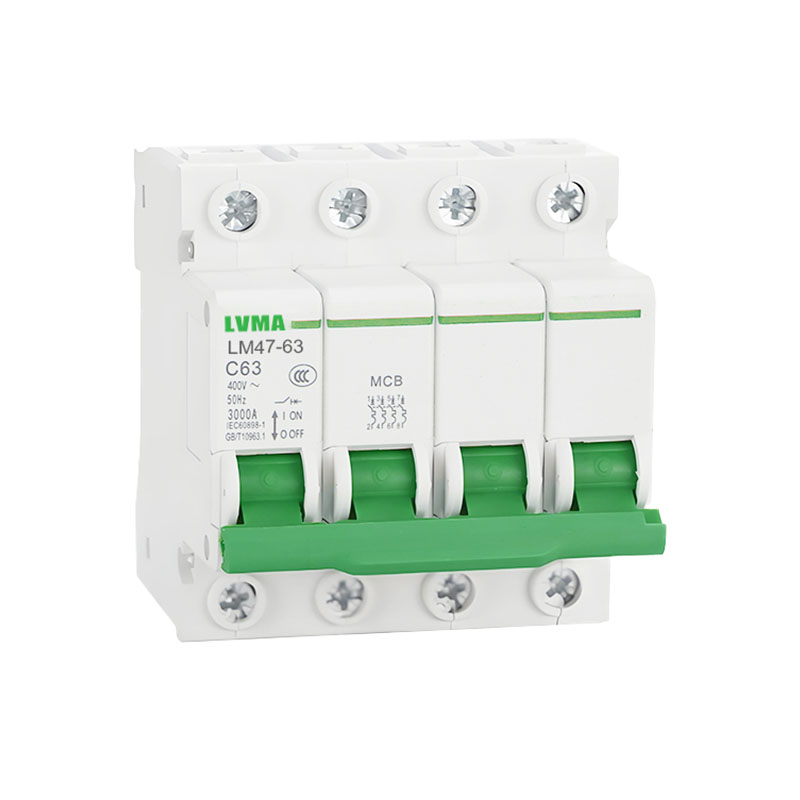

LM47-63 MCB 4.5kA
Miniature Circuit Breaker (MCB) is the core component for Circuit protection and on-off control in low-voltage distribution systems, which is widely used in homes, commercial buildings and small industrial scenarios.
- Model name: LM47-63
- Rated current:1,2,3,4,5,6,8,10,13,16,20,25,32,40,50,63A
- Rated voltage :230/400V
- Poles:1P,2P,3P,4P
- Rated Breaking capacity:4500A
- Standard:IEC/EN 60898-1
| Standard | IEC/EN60898-1 |
|---|---|
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |
| Poles | 1P,2P,3P,4P |
| Rated voltage(Ue) | AC230/415V |
| Rated current(In) | 1,2,3,4,5,6,10,16,20,25,32,40,50,63 |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4500A |
| Rated impulse withstand voltage(Uimp) | 4000V |
| Thermal release characteristic | (1.13-1.45)xIn |
| Magnetic release characteristic | B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn |
| Electrical life | 4000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to +40℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max.terminal size for cable | 25mm² |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |

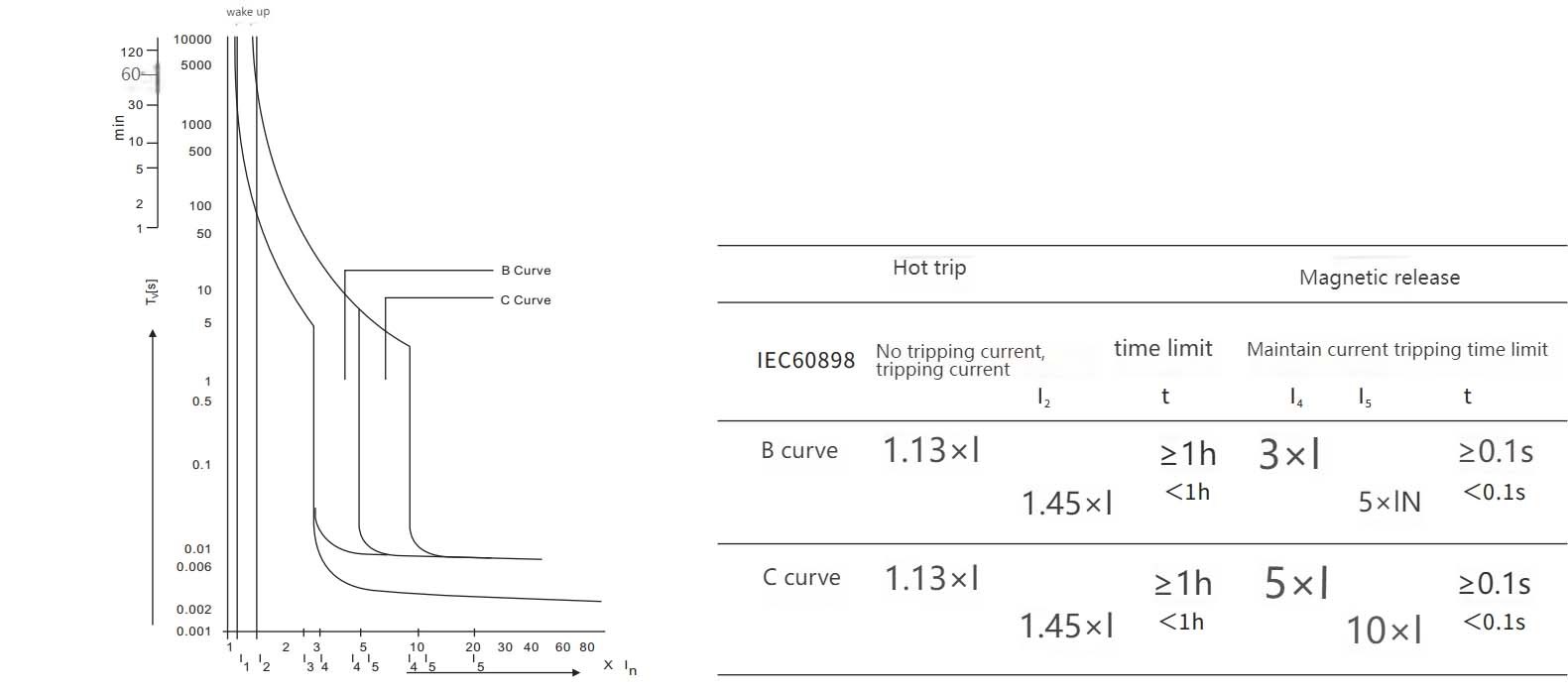

Tripping Characteristic (IEC60898-1)

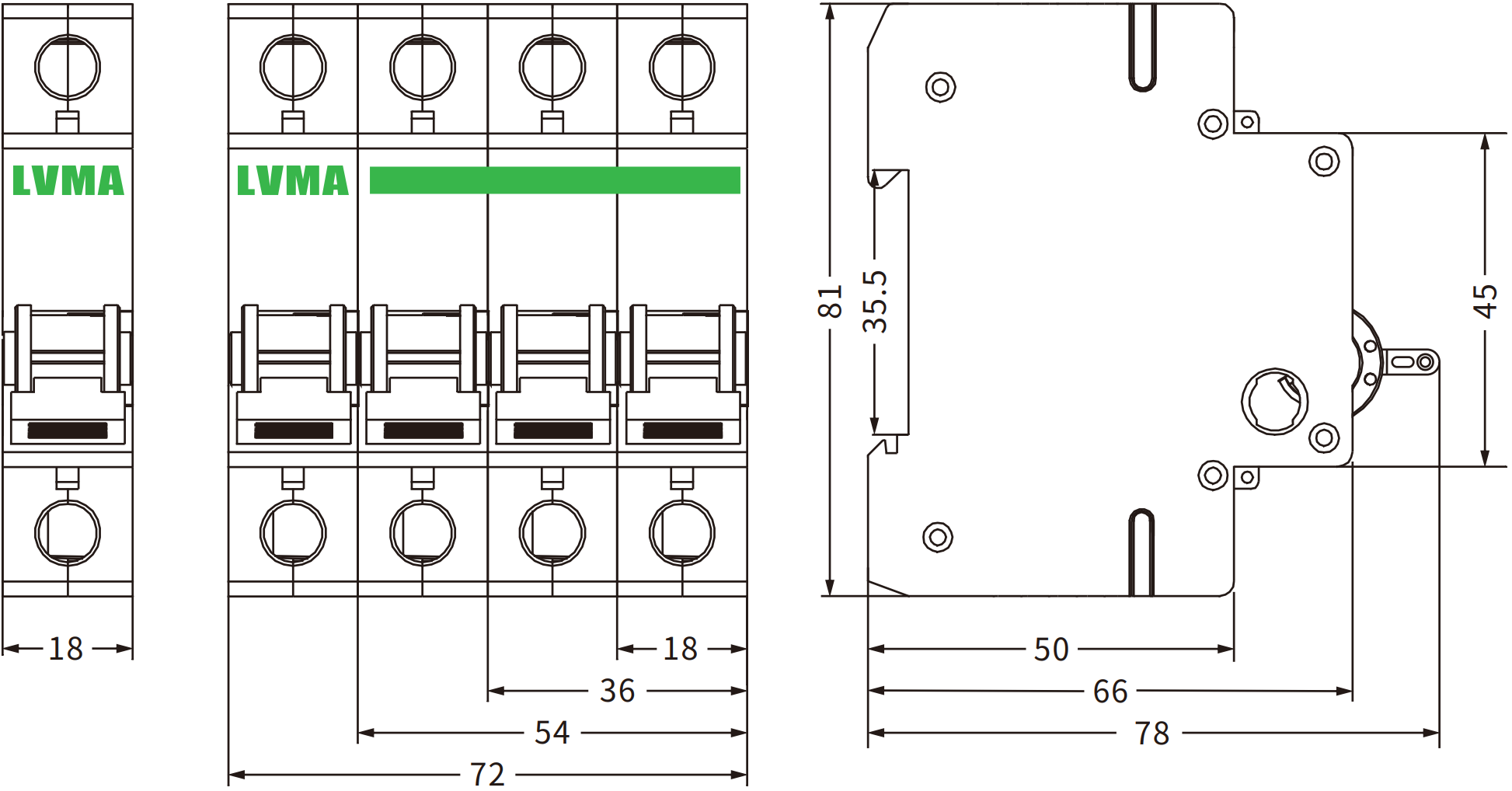

Overall and Installation Dimension(mm)
